6-20kVA UPS Series High-End Appearance and Advanced Technology in Telecom Power System

Propriedades Básicas
Local de Origem: Shenzhen, China (continente)
Marca: ESTEL
Certificação: ISO9001, CE, 3C, FCC, TLC
Número do modelo: 6-20kVA
Propriedades comerciais
Quantidade mínima de pedido: 1
Preço: 358-2143 usd
Condições de pagamento: L/C, D/A, D/P, T/T, Western Union
Capacidade de fornecimento: 20.000 conjuntos por mês
Etiquetas

sistema de alimentação de telecomunicações

Sistema de energia híbrida de telecomunicações

Sistema de energia de telecomunicações
Resumo do Produto
Uninterruptible Power Supply(UPS) Product Overview ESTEL 6-20kVA UPS series is specially designed for server applications in small and medium-sized enterprises.It supports rack installation mode and tower installation mode.Featuring an online double-conversion design and DSP digital technology,it ...

Detalhes do produto

Destacar:

6-20kVA UPS telecom power system

,

high-end UPS with advanced technology

,

telecom UPS system with warranty
Input Frequency Range: 50/60Hz±4Hz
Battery Pack Voltage: 192VDC por padrão (pode ser personalizado para 240VDC)
Batter Quantity: 12VDC×16pcs (pode ser personalizado para 2Opcs)
Output Voltage: 208 VCA @220 VCA @ 230 VCA @ 240 VCA
Output Frequency: 50 Hz ± 0,1 Hz, 60 Hz ± 0,1 Hz
Output Power Factor: 0,8
Descrição do produto

Uninterruptible Power Supply(UPS)



Product Overview



ESTEL 6-20kVA UPS series is specially designed for server applications in small and medium-sized enterprises.It supports rack installation mode and tower installation mode.Featuring an online double-conversion design and DSP digital technology,it delivers pure sine wave output with exceptional performance and a high-end appearance,it presents the perfect integration of cutting-edge technology and traditional products.



Product Features

  • Output power factor is 0.8(can be customized to 1),more suitable for the evolving trends of loads;
  • The overall efficiency is as high as 90%,reducing the power loss of the UPS;
  • Intelligent battery management,extending the battery life;
  • Wide input voltage range,capable of adapting to harsh grid environments;
  • Safety for online maintenance without interruption of power supply for loads (optional);
  • Rich communication and monitoring for real-time monitoring of the power status.



)







UPS Capacity Y 6KL 10K 10KI 10K 15KL 20KL
Rated Output Capacity 6KVA/4.8kW 10kVA/8kW

15kVA/

12kW

 20kVA/ 16kW
Rated Voltage 208VAC 220VAC 230VAC 240VAC 3-phase in,1-phase out:220±1%



AC Input

 Input Voltage Range 50%load:115-300VA; 100%load:176-300VAC;

50%load:190-520VAC(3-phase)

100%load:305-478VAC;
Input Frequency Range 50/60Hz±4Hz



Battery Input

 Battery Pack Voltage 192VDC by default(can be customized to 240VDC)
Battery Quantity 12VDC×16pcs(can be customized to 2Opcs)
Charging Current

Built-in batteries:1A±10% default setting, max.2A;

External batteries:4A±60% default setting, max.6A;











AC Output

 Output Voltage 208VAC @220VAC@230VAC@240VAC
Output Frequency 50Hz±0.1Hz,60Hz±0.1Hz
Waveform Linear load:Sine wave,THD<3%;Non-linear load:Sine wave,THD<8%;
Output Power Factor 0.8





Overload Capability

 AC Mode

100%-110%:10min;

110%-130%:1min;

>130%:1sec;
100%-110%:
30min;
100%-130%
5min
>130%:1sec;

100%-110%:15min;

110%-130%:30sec;

>130%:1sec;



Battery Mode

100%-110%:30sec:

110%-130%:10sec;

>130%:1sec;
100%-110%:
3min
110%-130%:
30sec
>130%:1sec;

100%-10%:5min; 110%-130%:1sec;

>130%:

act immediately;
Efficiency AC Mode >90% >91%
Battery Mode >89% >91%
Communication and Monitoring

RS232(can convert to RS485);Smart card slot(can expand with multiple

monitoring modes,via SNMP,mobile phone text message,etc.)

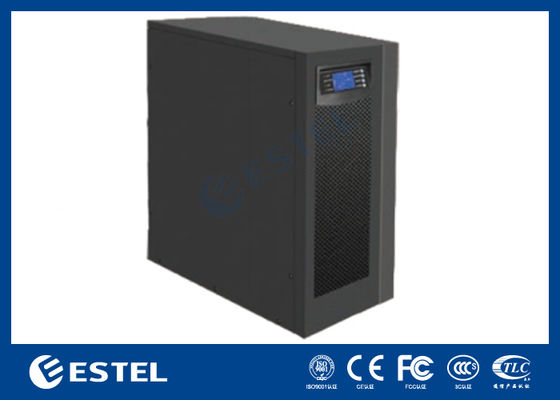

Tower Type

 Weight (kg) 50 12.6 59 13.2 14.8 15.3 15.3
Size(D×W×H)(mm) 500×240 ×460

425×190

×320

500×248

×620

 425×190 ×320 425×190 ×320

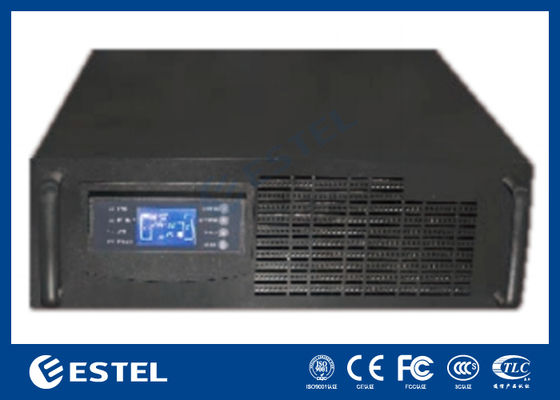

Rack Type Weight (kg)   18   19.5 21 42 42
Size(D×W×H)(mm)   600×440 ×130 - 600×440 ×130 600x440x130
