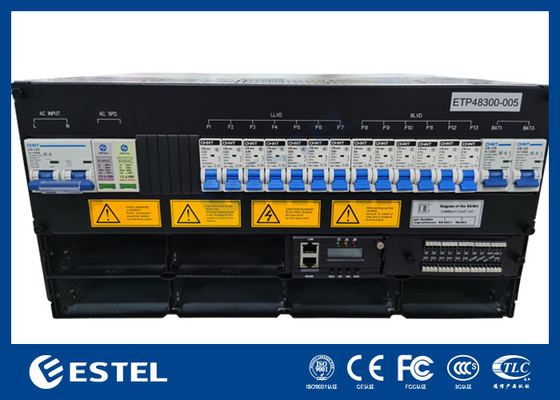

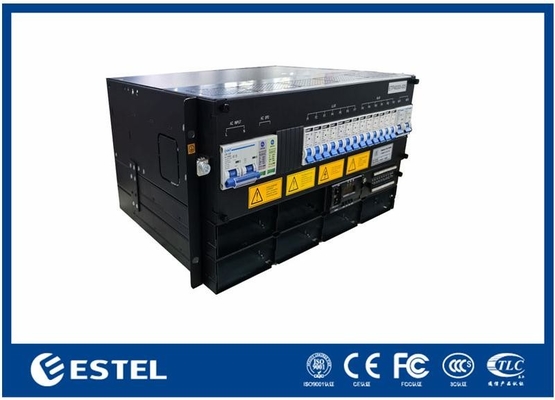

3–12kW DC Power System 5U Subrack, 220VAC Input, 43–58VDC Output, >96% Efficiency, ≤2kg Rectifier Modules, 19-Inch Rack Mount

3–12kW DC Power System 5U Subrack, 220VAC Input, 43–58VDC Output, >96% Efficiency, ≤2kg Rectifier Modules, 19-Inch Rack Mount
3–12kW DC Power System 5U Subrack, 220VAC Input, 43–58VDC Output, >96% Efficiency, ≤2kg Rectifier Modules, 19-Inch Rack Mount 3–12kW DC Power System 5U Subrack, 220VAC Input, 43–58VDC Output, >96% Efficiency, ≤2kg Rectifier Modules, 19-Inch Rack Mount 3–12kW DC Power System 5U Subrack, 220VAC Input, 43–58VDC Output, >96% Efficiency, ≤2kg Rectifier Modules, 19-Inch Rack Mount

Imagem Grande :  3–12kW DC Power System 5U Subrack, 220VAC Input, 43–58VDC Output, >96% Efficiency, ≤2kg Rectifier Modules, 19-Inch Rack Mount

Detalhes do produto:
Lugar de origem: CHINA
Marca: Telecom Rectifier Unit (TRU)
Certificação: CE UL FCC
Número do modelo: ET2304000
Condições de Pagamento e Envio:
Quantidade de ordem mínima: 100
Preço: USD50-USD500
Detalhes da embalagem: Estojo de madeira
Tempo de entrega: 20 ~ 35
Termos de pagamento: T/T, Western Union
Habilidade da fonte: 5000
Descrição de produto detalhada
Tensão de entrada: 220V, 200-250V, AC220V, 85V-290VAC Sistema de módulo de retificador de telecomunicações 48V 30A, 380 Tensão de saída: 48V, DC48V, 24VDC, 24.110V
Corrente de saída: 30a, 10a, 50a, 20a, 15a Frequência de saída: 50/60Hz, 45-65Hz, 47 ~ 63Hz, 50/60Hz Power de telecomunicações 48V 30A Sistema de módulo de retifica
Aplicativo: Telecomunicações, Utilidades, Automatização Industrial, Transmissão de Energia Elétrica, BTS Tipo: Retificador de telecomunicações, sistema de retificador, retificador de telecomunicações para comuta
Eficiência: 96%, 92%, 95%,> 90% Garantia: Dentro de um ano
Tamanho: 482,6mm*255mm*128,9mm, 560*460*520mm Nome do produto: Sistema de retificador, fonte de alimentação de telecomunicações, sistema de energia de telecomunica
Peso: 36 kg Cor: Preto
Temperatura de trabalho: -40°C~+75°C Material: A concha de metal, concha de alumínio
Montar: 19 polegadas de montagem de rack 2u, montagem de rack de 19 polegadas Módulo de retificador: 48VDC/50A*4PCs, R48-2900U R48-3200E
Saída: 24VDC ou 48VDC, tensão constante Tipo de saída: Múltiplo, DC
potência de saída: 51 - 100W, 401 - 500W, potência máxima de saída 1680W
Destacar:

5U telecom rectifier system 220VAC input

,

19-inch rack mount DC power system

,

high efficiency rectifier modules 43-58VDC

3–12kW DC Power System 5U Subrack, 220VAC Input, 43–58VDC Output, >96% Efficiency, ≤2kg Rectifier Modules, 19-Inch Rack Mount



Product Overview



The 3–12kW DC Power System 5U Subrack is a high-efficiency, compact power solution designed for telecom, data center, and industrial applications. Built for flexible rack or cabinet installation, it supports 220VAC single-phase input and provides a stable –43 to –58VDC output with a rated value of –53.5VDC. The system achieves an efficiency of over 96%, ensuring reliable performance and low energy loss.



The modular design accommodates up to four rectifier modules, each rated at 3000W with a weight of ≤2kg. Forced cooling guarantees stable operation under heavy loads, while the system maintains excellent power quality with power factor ≥0.99 and THD ≤5%. The total capacity reaches 12kW, suitable for demanding backup and distribution scenarios.



For control and monitoring, the system integrates 4 analog inputs (battery and ambient temperature), 7 digital inputs, and 6 dry contact alarm outputs. Communication is enabled via RS232/485 and SNMP, with an intuitive LCD display for local management.



Engineered for harsh environments, the unit operates within –40℃ to +65℃ (full load below 50℃), tolerates humidity from 5% to 95% non-condensing, and supports altitudes up to 3000m. Its robust design ensures long-term reliability even in challenging conditions.



With its lightweight rectifier modules, front maintenance support, and IP20 protection, this DC power system offers a cost-effective and scalable solution for operators requiring high availability, compact size, and easy serviceability.





3-12kW 5U Subrack



System

  • Dimension: 482.0(W) × 350.0(D) × 5U(H)

  • Weight: ≤20kg (without rectifiers)

  • Cooling mode: Natural cooling

  • Installation mode: Installed on 19-inch rack or inside the cabinet

  • Cabling mode: Top inlet and top outlet

  • Maintenance mode: Front maintenance, support module grade change

  • Protection level: IP20



AC Distribution

  • Input mode: 220VAC single phase

  • Input capacity: 1×100A/2P

  • Input frequency: 45–66Hz, rated value: 50Hz/60Hz

  • AC SPD: 20kA/40kA, 8/20μs



DC Distribution

  • Output voltage: –43 ~ –58VDC, rated value: –53.5VDC

  • Maximum capacity: 12kW (3kW × 4)

  • Battery breakers: 2×63A/1P

  • Load breakers: LLVD: None; BLVD: 2×63A/1P

  • DC SPD: 10kA, 8/20μs



Rectifier

  • Input voltage: 85VAC ~ 300VAC, rated 220VAC

  • Efficiency: >96%

  • Rated power: 3000W (176–300VAC)

  • Working temperature: –40℃ ~ +75℃ (full output below 50℃)

  • Dimension: 106.5mm(W) × 286mm(D) × 41.5mm(H) (1U/H)

  • Weight: ≤2kg

  • Cooling mode: Forced cooling

  • Power factor: ≥0.99

  • THD: ≤5%



Controller

  • Signal input: 4 AI (3 Battery temp., 1 ambient temp), 7 DI

  • Alarm output: 6 dry contact

  • Communication port: RS232/485, SNMP

  • Display mode: LCD



Environment

  • Operating temperature: –40℃ ~ +65℃ (full output below 50℃)

  • Storage temperature: –40℃ ~ +70℃

  • Operating humidity: 5% ~ 95% (non-condensing)

  • Altitude: 0 ~ 3000m (If the altitude is within the range of 2000m to 3000m, the maximum operating temperature decreases by 1℃ as the altitude increases by 200m.)
